VOC Rotors and Cassettes

EcoVOC™ VOC Concentrator Rotors & Cassettes

High-Efficiency VOC Capture & Concentration for Industrial Emission Control

DRI’s EcoVOC™ VOC Rotors and Cassettes are advanced air pollution control solutions designed to capture, concentrate, and reduce volatile organic compound (VOC) emissions from industrial exhaust streams. Using a continuously rotating zeolite adsorption rotor, the EcoVOC™ system efficiently treats high-volume, low-concentration VOC exhaust air, making downstream destruction or recovery systems far more energy efficient.
Recovery Rate
0 %
Years Experience
0 +
Cross-Contamination
0 %

VOC Rotors and Cassettes

Brochures

VOC Rotors and Cassettes

Technical Specifications

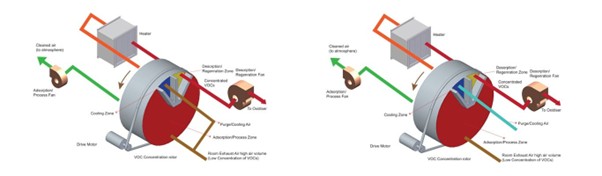

How the EcoVOC™ Concentrator Works

The EcoVOC™ system operates on a continuous adsorption–desorption cycle, using a precision-engineered zeolite rotor divided into three functional zones: Adsorption, Cooling, and Desorption (Regeneration).

Adsorption (Process) Zone

In the adsorption zone, large volumes of process exhaust air containing low VOC concentrations are passed through the rotating zeolite rotor.

The zeolite media selectively adsorbs VOCs and other organic pollutants, allowing cleaned air with significantly reduced VOC content to be safely discharged to the atmosphere. This step dramatically lowers VOC emissions while maintaining stable process airflow.

Cooling Zone

For optimal adsorption efficiency, the zeolite rotor must operate at controlled temperatures.

In the cooling zone, the rotor is cooled to restore and maintain its adsorption capacity. During this process, excess heat is recovered, helping reduce overall regeneration energy demand and improve system efficiency.

Desorption / Regeneration Zone

As the rotor continues to rotate, it enters the regeneration zone where the adsorbed VOCs are released using a controlled hot air stream (typically 180–200°C).
This process:
  • Regenerates the zeolite media continuously
  • Produces a highly concentrated VOC exhaust stream
  • Achieves VOC concentration ratios up to 30:1, with typical operating ranges between 10:1 and 25:1
The concentrated VOC stream can then be treated using thermal oxidisers, catalytic oxidisers, or recovery systems, significantly reducing treatment size and operating costs.

Key Benefits of EcoVOC™ Rotors & Cassettes

  • Efficient VOC adsorption using high-performance zeolite media
  • Continuous operation with stable, predictable performance
  • Ideal for high airflow, low VOC concentration exhaust streams
  • Significant reduction in energy consumption for downstream VOC destruction
  • Compact rotor and cassette design for easy integration
  • Custom-engineered solutions for specific industrial applications

Typical Applications

  • Paint shops and coating lines
  • Chemical and pharmaceutical manufacturing
  • Printing and packaging industries
  • Electronics and semiconductor plants
  • Solvent handling and process exhaust systems

EcoVOC™ VOC Rotors & Cassettes

  • Smarter VOC Control. Higher Concentration. Lower Energy Cost.

Product Gallery

World-Leading Expertise You Can Trust

DRI is proud to be the world’s largest manufacturer of desiccant-coated aluminum substrate energy recovery wheels, with over 25 years of global installation experience.

Our EcoFresh wheels are installed in some of the most iconic buildings worldwide, delivering proven performance and reliability.

DRI offers the highest recovery enthalpy wheels in the industry, featuring aluminum substrates coated with advanced desiccants. These wheels can be integrated into Fresh Air Handling Units (FAHU), Energy Recovery Ventilators (ERVs), or supplied as standalone ducted units, depending on project requirements.

Certified Performance & Global Compliance

All DRI energy recovery wheels are fully certified, with certifications from Eurovent and the AHRI program available. Certification details can be accessed through our website, catalogues, or provided upon request.
✕
